New 2023 Coachmen RV Catalina Legacy 313RLTS

Travel Trailer

Stock #313RLTS

Bunker Hill, IN

1 of 2

Sale Price: $36,995

Payments From: $318 /mo.

Sleeps 5
3 Slides
Rear Living Area

Kitchen Island

36ft Long
8,375 lbs

See All Specs

Specifications

Sleeps	5	Slides	3
Length	36 ft 5 in	Ext Width	8 ft
Ext Height	11 ft 3 in	Int Height	6 ft 9 in
Hitch Weight	950 lbs	GVWR	10500 lbs
Dry Weight	8375 lbs	Cargo Capacity	2125 lbs
Fresh Water Capacity	44 gals	Grey Water Capacity	40 gals
Black Water Capacity	30 gals	Furnace BTU	35000 btu
Available Beds	Queen	Refrigerator Type	12V
Refrigerator Size	10 cu ft	Cooktop Burners	3
Shower Size	36" x 30"	Number of Awnings	2
LP Tank Capacity	20 lbs	Water Heater Capacity	6 gal
Water Heater Type	Gas/Electric DSI	AC BTU	13500 btu
Awning Info	10' and 13' Electric w/Multicolored LED Strip & Remote	Axle Count	2
Washer/Dryer Available	Yes	Number of LP Tanks	2
Shower Type	Standard	Electrical Service	50 amp

Features

Standard Features (2023)

Construction & Equipment

Universal Solar Prep w/Installed Roof Panel Port
Cambered Structural Steel I-Beam Frame
Full Length Frame E-Coated Outriggers
5/8" Tongue & Groove Plywood Floor Decking
2"x3" Floor Joists on Approximately 12" Centers
5" Floor To Frame Steel Lag Bolts
Enclosed, Fully Sealed Underbelly
Darco Subfloor Protective Wrap/Enclosure
3/8" Fully Decked Walk-On Roof
Seamless Alpha Roof Membrane with 18 Year Warranty
Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
5/8" Plywood Under Bed & Dinette Base
6' 9" Interior Height
Easy-Trac Rack and Pinion Slide-Out(s)
R-7 Fiberglass Insulation Throughout
6 Gal. Gas/Electric DSI Water Heater
Water Heater By-Pass Winterization Kit
12V Demand Water Pump
Premium Exterior Graphics Package
Upgraded Front Graphics Design
Platinum .024" Aluminum Exterior w/.030 Skirt Metal
Smooth HD Aluminum Radius Front
Polished HD Aluminum Fender Skirts
Spare Tire, Carrier, and Cover
Dexter EZ Lube Axles w/Leaf Spring Suspension
Self Adjusting Brakes
Roto-Cast Holding Tanks
Painted Bumper w/ Drain Hose Carrier and End Caps
35,000 BTU Auto-Ignition Furnace w/Wall Thermostat (N/A 283RKS)
30,000 BTU Auto-Ignition Furnace w/Wall Thermostat (283RKS Only)
13,500 BTU Fully Ducted A/C
30 Amp Elect. Service w/ 100v 45-Amp Power Covt.
50 AMP Elect. Service (Standard on 303RKDS, 333RETS, & 343BHTS--see Options)
Upgraded Aluminum Wheels
Magnetic Baggage Door Latches

Exterior

Flip Down Cargo Rack w/200lb. Cap.
Electric Awning w/Multicolor LED Strip & Remote -Carefree
Electric Tongue Jack
Black Tank Flush
Battery Disconnect Switch
Outside Utility Shower w/ Hands Free Holder
20lb. LP Tank (2) w/ABS Cover
LP Quick Connect
Flush Mount Baggage Doors w/Radius Corners
Diamond Plate Rock Guard
Stabilizer Jacks
G20 Tinted Privacy Windows
(2) JBL Elite Exterior Speakers
Friction Hinge Door
Radius Cornered Fiberglass Entry Door
Exterior 110V G.F.C.I Protected Receptacle
Exterior RG-6 Coax Cabling and Satellite Prep
Exterior TV Hookup
Rain Gutters with Drip Spouts
Standard Solid Step at Main Entry Door
XL Swing Arm Entry Assist Handle (Main Entrance Only)
Rear View Camera Prep
Full Size Exterior Camp Kitchen (323BHDSCK, 343BHTS)
Exterior Camp Kitchen (263BHSCK, 293QBCK, 303QBCK)
Bottle Openers (Exterior Camp Kitchens)
Pets - "Leash Link" Quick Hookup D-Ring

Interior

2) 12V 14" Ceiling Vent Fans (Living Room & Bathroom)
Magnydyne 4G LTE Connectivity with WiFi Booster and Extender
Siphon 360 Roof Vent in Bathroom
Accent Wall Board Behind Entertainment Center, Bedroom, and Camp Kitchen
JBL Aura MP3/FM Stereo w/Bluetooth and USB Charge Port
(2) Multizonal JBL Premium Interior Speakers
10 Cu. Ft. 12V Refrigerator
Seamless Thermofoil Countertops Throughout
Under-mount Farm Style Sink
Residential Kitchen Faucet w/Pull Down Sprayer
Flush Counter Kitchen Sink Covers (2-Tandem Axle Models)
Full Length Kitchen Drawer Guides
LCI One Control Monitor Panel System
3 Burner SST Range w/Flush Glass Top & LED Accent's
Slim Line Range Hood
Silverware Kitchen Drawer
Microwave W/Glass Turn Table
Congoleum Woodplank Linoleum Flooring
Residential In-Floor Ducted Heat
4,000 Lumen Interior Lighting
Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
Easy Access Storage Underneath Jiffy Sofa
Designer Wall Light Main Slide Room
Hard Valance Window Treatment w/Decorative Lambrequins
Pleated Night Window Shades
Pedestal Thermofoil Dinette Table
Under Bench Dinette Storage
Easy Access Booth Dinette Storage Doors
Marine Toilet with Foot Flush
ABS Tub/Shower Surround w/Shelves
Skylight Above Tub/Shower
Glass Step-In Shower w/ABS Surround (Per Floorplan)
Medicine Cabinet with Mirror
Bedroom USB Surface Mounts(2)
Kitchen USB's & Outlets
USB Surface Mounts Near Bunk Beds
Solid Master Bedroom Door(s) (Per Floorplan)
Solid Bunk Room Door (Per Floor Plan)
Full Length Night Stands (N/A 303RKDS, 333RETS & 343BHTS)
Mirrored Wardrobes in Master Bedroom (N/A King Bed Models)
Master Bedroom Overhead Cabinets
Underbed Storage w/Separation from Outside Front Storage
Designer Fitted Master Bed Sheet
Teddy Bear Bunk Mats
Washer/Dryer Prep (303RKDS, 333RETS, 343BHTS)

Safety

Smoke Alarm
LP/CO Gas Detector
Fire Extinguisher
Fire Escape Windows
Entrance Door Window
Dead-Bolt Lock on Entry Door
SafeRide RV Motor Club (1 YR Roadside Assistance)

Options

7 Cu. Ft. LP Gas/Electric RV Refrigerator w/Reversable Door Inserts
15,000 BTU Ducted A/C IPO 13.5 A/C
Steel Fold Down Steps IPO Standard Solid Steps at Main Entry Door
50 Amp Service w/2nd 13.5 A/C (263FKDS, 293QBCK, 303QBCK, 303RKDS, 323BHDSCK, 323QBTSCK, 333RETS, 343BHTS)
50 Amp Service w/2nd A/C Prep (263FKDS, 293QBCK, 303QBCK, 303RKDS, 323BHDSCK, 323QBTSCK, 333RETS, 343BHTS)
Peak Performance Solar Package – 200W Panel w/ 30 A Solar Controller
Free Standing Table w/4 Chairs (N/A U-Dinette Floorplans)
Tri-Fold Hide A Bed Sofa
Fireplace w/Electric Heater in the Living Room (N/A 263RLS)
2nd Queen Bed IPO Bunkroom & Camp Kitchen (343BHTS Only)
GE Washer/Dryer Combo Unit (303RKDS, 333RETS, 343BHTS)
CSA Standards

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

First Time 5th Wheel Owners
We purchased our Arctic Wolf this past weekend from RV Dynasty and I cannot say enough good things about this dealership. We worked with Brock, Tara, Jesse, and Mike. They know their RVs and are willing to make a deal. They were able to answer any questions we had, gave us an hour orientation of how

Stephanie from Thomasboro, IL
Best RV place in the State of Indiana!
Best RV place in the State of Indiana. Its a 1 stop shop for everything you'll need & more!

J
The service department is amazing!
The service department is amazing! I’ve been an RV owner for years & I’ve never had a better experience. I had my hydraulic jacks repaired, entertainment center completely rewired, & backup camera wired all in 2 days & for 1/3 the price I was quoted just for the parts for the jacks at another dealership.

M

We are here to help, call us at
765-689-8815 or Contact Us

We are here to help!

765-689-8815
Contact Us
Contact Sales

RV Dynasty is not responsible for any misprints, typos, or errors found in our website pages. All percent off numbers are rounded to the nearest percent. Any price listed excludes sales tax, registration tags, and delivery fees. Payments are estimates based on 10% down and 7.99% APR for qualified buyers. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us @765-689-8815 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

New 2023 Coachmen RV Catalina Legacy 313RLTS

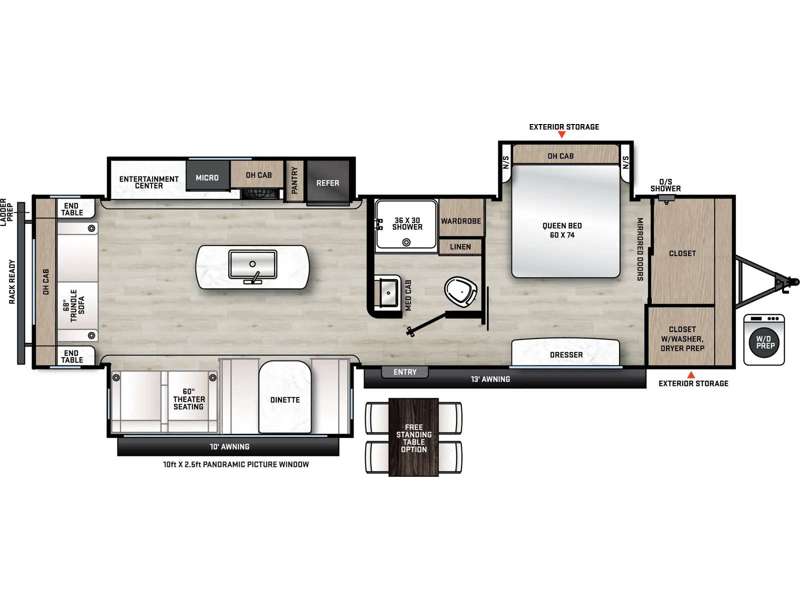

313RLTS Floorplan
